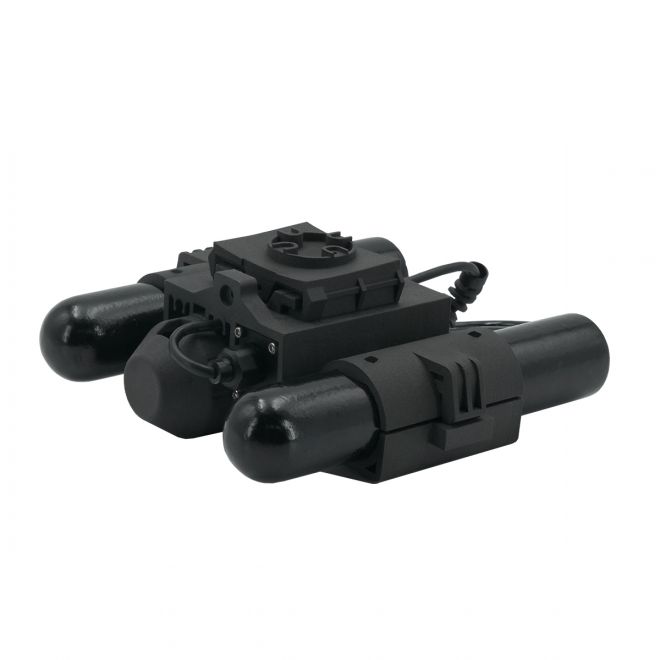

Turbidity Sensor

Monitor, measure and record the amount of light that is scattered by the suspended solids
across different underwater environments.

Integrated Functionality

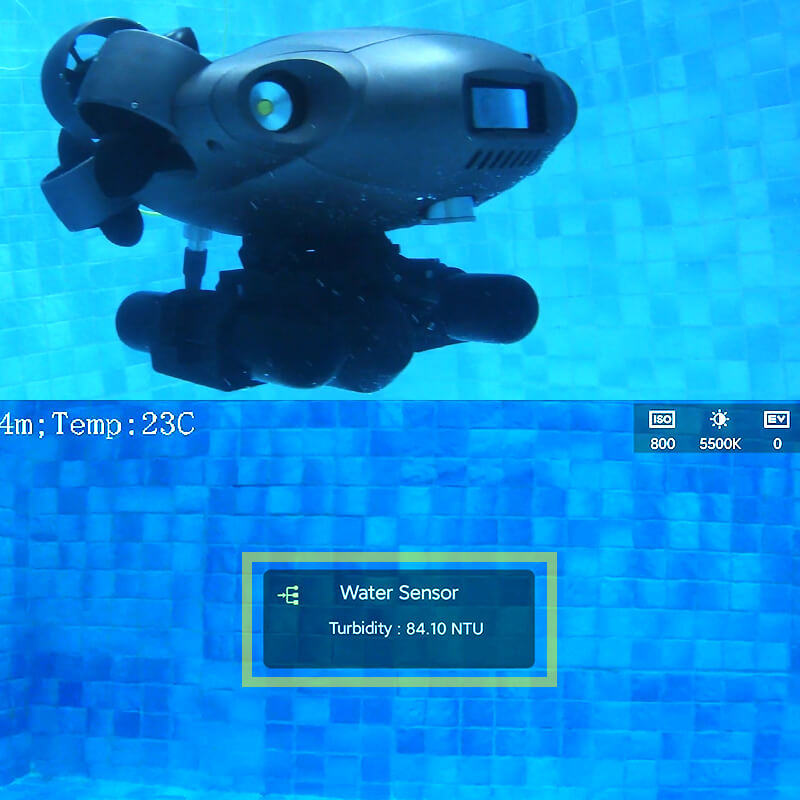

Integrated with the FIFISH APP, Measure the amount of light that is scattered by the suspended solids in water. Turbidity sensors measure the amount of light that is scattered by the suspended solids in water. As the amount of total suspended solids (TSS) in water increases, the water’s turbidity level (and cloudiness or haziness) increases.

Simple & Easy Assembly

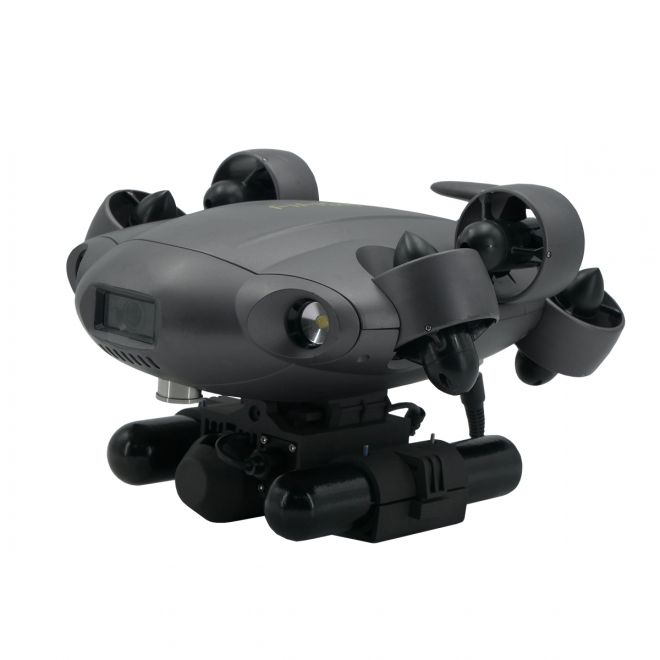

Simply attach the Turbidity add-on and its power cable to the ROV’s fuselage, which will be ready for operations and dives at a moment’s notice. Reduce operational costs and human risks by automating routine underwater measurement tasks.

ITEM	SPEC.
Depth Rating	100m
Operation temperature	0 to 60 °C
Input Voltage	9V-13V DC
Communication	UART
Range	0~4000 NTU (mg/l)
Tolerance	0.1 NTU (mg/l)

Turbidity Sensor

Specifications
